DETAILS

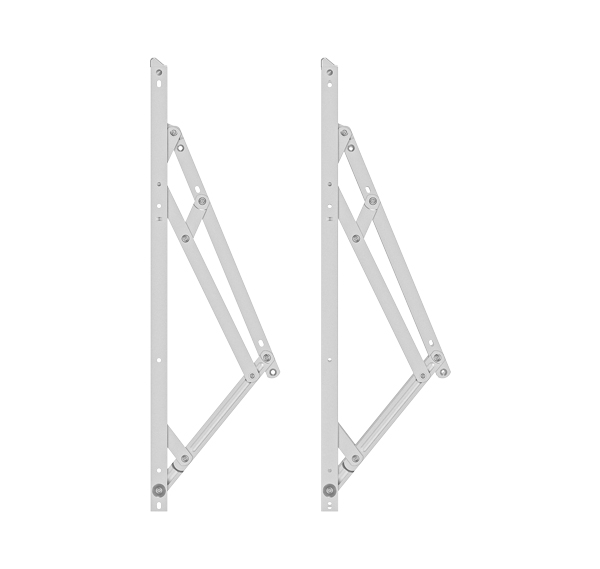

Friction stay with limiting function, in stainless steel AISI 304, developed for curtain wall systems with chamber 16 ~ 18.
• Supplied in sets of 2 units with a length of 607 mm.
• Restrictions: maximum sash height: 1800 mm; maximum sash weight: 120 kg.
• It incorporates a skid that allows pressure adjustment.
• For sash height greater than 1000 mm, the use of the height regulator (ref. 18200) is recommended.
Groove type
Euro groove (frame 14 ~ 18)
Euro groove (flat frame)
